Flanges Dealers in Mumbai
Kingston Steel & Alloy are a well known supplier of flanges in the steel market worldwide. One of our popular products is the Flange. Flanges is a forged or a cast ring tat is designed to connect sections of a pipe or any other machinery that requires a intermediate connecting point. Some of the basic types of flanges that have an enormous demand are the Stainless Steel Flanges, Alloy Steel flanges and Carbon Steel Flanges.
Stainless Steel Flanges : As the name suggests these are made up of stainless steel, a material which is popularly used for making flanges.
Alloy Steel flanges : Such steels are alloyed with other materials to improve the mechanical properties.
Carbon Steel Flanges : The higher carbon content will provide you with stronger and harder material.

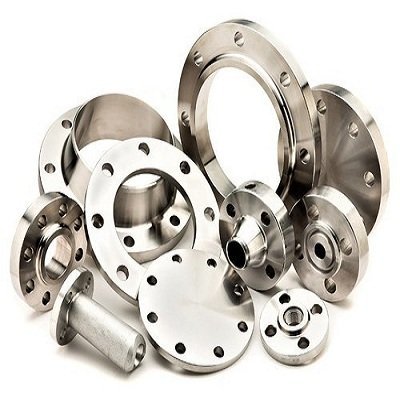

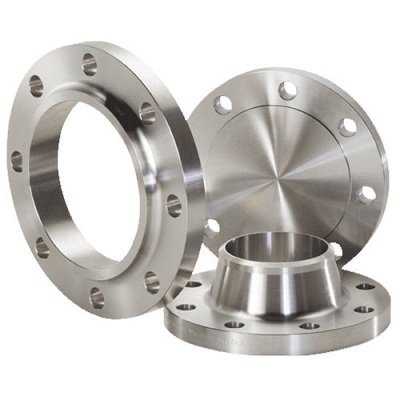

Stainless Steel Flanges
Kingston Steel & Alloy(KSA) is a leading suppliers and exporters of Stainless Steel 304 Flanges which are produced and supplied through a planned and well-executed strategy of swifter consignment packaging and delivery procedure. Our Stainless Steel Weld Neck Flanges come in a variety of schedules that are able to accommodate the inner diameter of pipes and are easily identified due to the tapered hub that it sports.They are easily weldable and provide solid welded connections in the gasoline and fresh water tanks. Where temperature fluctuation is a part and parcel of the production process, the weld neck flange comes in handy. Also We offer wide range of Stainless Steel ASTM A182 304 Flanges such as SS 304 Slip On Flanges, SS 304 Socket Weld Flanges, SS 304 Weld Neck Flanges, SS 304 Blind Flanges, SS 304 Orifice Flanges, SS 304 Screwed / Threaded Flanges, SS 304 Reducing Flanges, SS 304 Ring Type Joint Flanges (RTJ) etc.
Stainless Steel Flanges Specifications
Specifications : ASTM A182 / A240 & ASME SA182 / SA240
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Stainless Steel Flanges Equivalent Grades
| TANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Flanges Supplier in
 |
 |
| Indonesia | Iran |
 |
 |
| Iraq | Malaysia |
 |
 |
| Saudi-Arabia | South-Africa |
 |
 |
| UAE | United Kingdom |
Quick Enquiry:

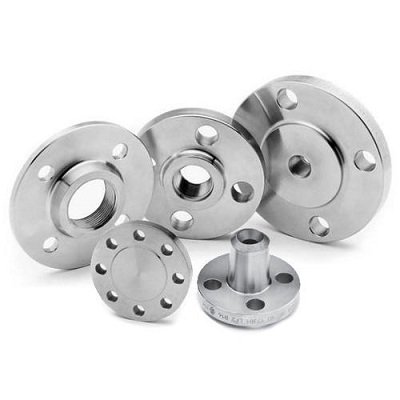

Alloy Steel Flanges
Alloy Steel Flanges are made in different steel alloys. The flanges vary in dimensions and types. There are ½ inches through 48 inches of nominal diameter sizes of flanges. Kingston Steel & Alloy (KSA) is a leading supplier of the ASTM A182 Low Alloy Steel flanges as well as the other types of alloys. The ASTM A 182 specification specifies flanges for high pressure services.
The Alloy Steel Flanges are used to close a pipe connection. There are different types and grades of the blind flanges as well. There are other different types of ASME SA 182 AS Flanges such as the weld neck flanges and socket weld flanges each specified for a particular role. The flanges can be threaded, weld neck or socket welded. The Alloy Steel Weld Neck Flange has a welded neck onto it that holds larger pipes in place for easy welding and installation. As one of the leading Alloy Steel Flanges supplier in Mumbai we supply all different types of flanges in all material grades. Please contact us for your alloy steel flange needs.
Alloy Steel Flanges Specification
| ASTM Specification | ASTM A182 , ASME SA182 |
|---|---|
| Size in inch | 1/2 inch (15 NB) to 48 inch (1200NB) |
| Standards | ANSI/ASME B16.5, B16.48, B 16.47 Series A & B, EN-1092, BS4504, BS 10, DIN |
| Class and Pressure Chart | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |

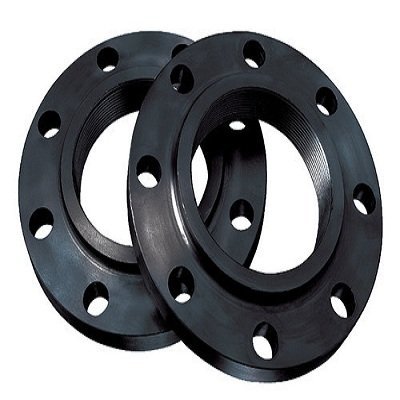

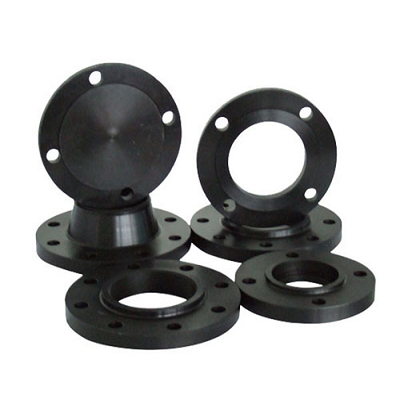

Carbon Steel Flanges
Flange is the equipment which is used to connect to pipes, pumps and valves for piping system. There are different types of flanges such as blind flange, lap, joint, welded and many other. Carbon steel flanges are widely used in high demand due to its excellent features like corrosion resistance, excellent durability and finishing is good. These are used in industries like petrochemical, chemical, power, agriculture and many other.
Kingston Steel & Alloy(KSA) is one of the leading Carbon Steel Flanges supplier in Mumbai and we produce flanges in different types and material grades. The carbon steel flanges have carbon, phosphorus, sulfur, manganese, silicon, nickel, chromium, copper, molybdenum and vanadium depending on the material grade.
The carbon steels have different dimensions and strengths. The tensile strength is in the range of 480MPa minimum tensile strength and 250MPa minimum yield strength. he Flange ANSI B16.5 Class 150 is a medium pressure class of the B16.5 standard flanges. The materials used for the flanges range and the pressure classes range based on the nominal bore sizes and the wall thicknesses.
Carbon Steel Flanges Specification
| Specifications | ASTM A105 / ASME SA105, A105N |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flanges Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Carbon Steel Flanges Grades
• ASTM A105 is high-temperature carbon steel which has grades like A53, A106, and API 5L.
• ASTM A350 is low-temperature carbon steel which has grades such as LF1, LF2 CL1/CL2, LF3 CL1/CL2
• ASTM A694 is high-yield carbon steel, which has grades like F42, F46, F48, F52, F56, F60, F65, and F70 and suitable for steel pipes
of API 5L X42, X52, X65, and X60.
• ASTM A105, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2
We Supply Flanges In
- Flanges Supplier in India
- Flanges Supplier in Saudi-Arabia
- Flanges Supplier in Iraq
- Flanges Supplier in Iran
- Flanges Supplier in UAE
- Flanges Supplier in United Kingdom

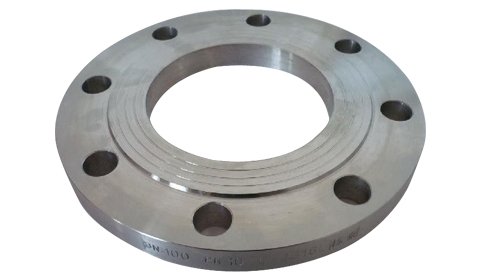

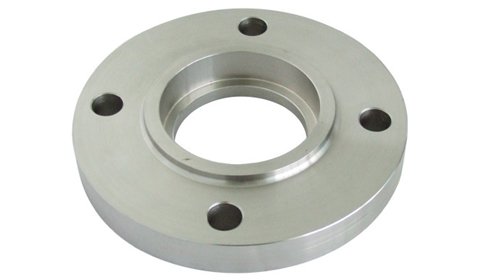

Slip On Pipe Flanges Supplier in Mumbai
Slip-on flanges are designed to slide over the outside diameter of the pipe to which it will be welded. These flanges are attached to the pipe by fillet welding at the hub and at the end of the pipe inside the flange. Slip-on pipe flanges slip over the pipe. Slip-on pipe flanges are typically machined with an inside diameter of the pipe flange slightly larger than the outside diameter of the pipe. This allows the flange to slide over the pipe but to still have a somewhat snug fit. Slip-on pipe flanges are secured to the pipe with a fillet weld at the top and the bottom of the flanges. Further these pipe flanges are categorized as a ring or a hub. Both ring and hub pipe flanges are considered slip on pipe flanges because they both slip over the pipe. Slip on pipe flanges that consist of a flat ring have published specifications that range from 1/2″ thru 144″. Slip on Pipe flanges with a hub have published specifications that range from 1/2″ thru 96″.

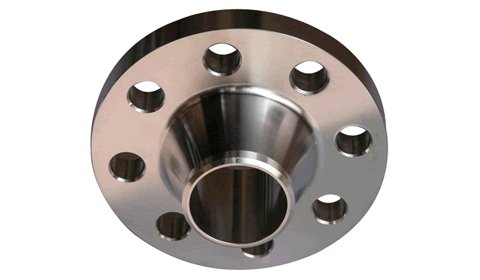

Weld Neck Pipe Flanges Supplier in Mumbai
Weld neck pipe flanges are attached to the pipe by welding the pipe to the neck of the pipe flange. Used in conjunction with a “Lap joint Stub End”, these flanges are nearly identical to a slip-on flange with the exception of a radius at the intersection of the flange face and the bore to accommodate the flanged portion of the stubbed.
This group of flanges is designed with a hub on the backside tapering to a diameter that will match the pipe to which it will be welded. These flanges are bored to match the inside diameter of the mating pipe so there will be no restriction of product flow. This allows for the transfer of stress from the weld neck pipe flanges to the pipe itself and also reduces high stress concentration at the base of the hub of the weld neck pipe flanges.
These flanges are often used for high pressure applications. To match the inside diameter of the pipe, the inside diameter of a weld neck pipe flange is machined. Weld Neck Pipe flanges with a hub have published specifications that range from 1/2″ thru 96″. Kingston Steel & Alloys provides Weld Neck pipe flanges in all material grades, specifications and sizes.

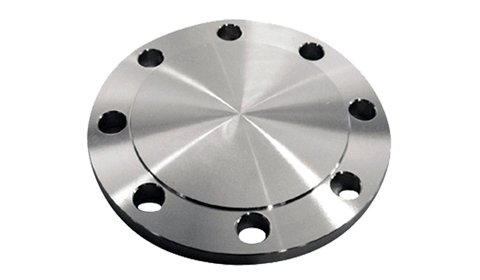

Blind Pipe Flanges Supplier in Mumbai
Pipe flanges used to seal the end of a piping system or pressure vessel openings to prevent flow are Blind pipe flanges. Blind pipe flanges are commonly used for pressure testing the flow of liquid or gas through a pipe or vessel. These flanges also allow easy access to the pipe in the event that work must be done inside the line. Slip on Pipe flanges with a hub have published specifications that range from 1/2″ thru 96″. Blind pipe flanges are often used for high pressure applications. Blind pipe flanges in all material grades, specifications and sizes are provided by Kingston Steel & Alloys.
Lap Joint Pipe Flanges Supplier in Mumbai
Flanges that slide over the pipe and are most commonly used with Stub End Fittings are the Lap Joint Pipe. Used in conjunction with a “Lap joint Stub End,” these flanges are nearly identical to a slip-on flange with the exception of a radius at the intersection of the flange face and the bore to accommodate the flanged portion of the stubbed. The Lap Joint pipe flange is free to rotate around the stub end while a pipe is typically welded to the Stub End. The benefit of this is that there will not be any issues with bolt hole alignment. These flanges are often used for applications that require frequent dismantling. Slip on Pipe flanges with a hub have published specifications that range from 1/2″ thru 24″. Sizes above 24″ are produced as lap joints to slip on dimensions. Lap Joint pipe flanges in all material grades, specifications and sizes are provided by Kingston Steel & Alloys.

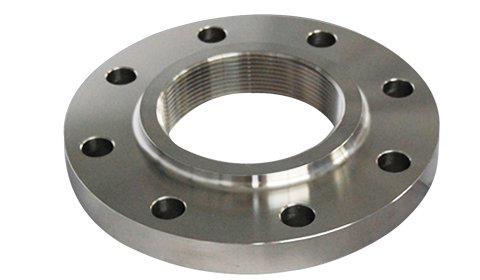

Threaded Pipe Flanges Supplier in Mumbai
Threaded flanges are threaded in the bore to match an external thread on the pipe. The threads are tapered to create a seal between the flange and pipe as the tapers approach the same diameter. These flanges are normally designed for low pressure, non-cyclic applications. Threaded pipe flanges are similar to slip-on pipe flanges except the bore of threaded pipe flange has tapered threads. Pipes that have external threads are used along with Threaded pipe flanges. These pipe flanges has an advantage that it can be attached without welding. Threaded pipe flanges are used Often for small diameter, high pressure requirements. Slip on Pipe flanges with a hub have published specifications that range from 1/2″ thru 24″. Kingston Steel & Alloys provides Slip-On pipe flanges in all material grades, specifications and sizes.
Socket Weld Pipe Flanges Supplier in Mumbai
Socket-weld pipe flanges are used on smaller sizes of high pressure pipes. These flanges are developed for use in small diameter, high pressure lines. Internally welded socket type flanges are typically used in chemical process, hydraulic lines and steam distribution lines. They have a counter bore from the hub side slightly larger than the outside diameter of the pipe. By inserting the pipe into the socket end and applying fillet weld around the top, these pipe flanges are attached which allows for a smooth bore and better flow of the fluid or gas inside of the pipe. Slip on Pipe flanges with a hub have published specifications that range from 1/2″ thru 24″. Socket Weld pipe flanges in all material grades, specifications and sizes are proved by Kingston Steel & Alloys.
